Drilling Machine

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, Not CNC

• Capacity
• Up to 1200 Feet Depth

• Color
• Blue & Yellow

• Computerized
• No

• Condition
• New

• Control System
• Other, Hydraulic & Manual

• Cutting Area
• Customizable as per drilling requirement

• Diameter
• 4 to 12 Inch Bore Diameter

• Dimension (L*W*H)
• 8300 mm x 2500 mm x 3500 mm (Approx.)

• Features
• Heavy Duty Construction, High Penetration Rate, Strong Hydraulic System, Reliable Operation

• Frequency
• 50/60 Hz

• Machine Type
• Truck Mounted Rotary & DTH Drilling Rig

• Material
• Heavy Duty Steel & Alloy Components

• Motor Power
• 60 HP Diesel Engine

• Noise Level
• <= 90 dB

• Power
• 60 HP

• Power Source
• Diesel Engine / Electric Motor

• Product Type
• Borewell Drilling Machine

• Spindle Speed
• Variable

• Usage & Applications
• Water Well Drilling, Borehole Drilling

• Voltage
• 415 V (Three Phase)

• Weight (kg)
• 7400 Kg (Approx.)

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, No

• Capacity
• Up to 150 Meter Drilling Depth

• Color
• Yellow

• Computerized
• No

• Condition
• New

• Control System
• Other, Hydraulic & Pneumatic

• Cutting Area
• Up to 200 mm Diameter Borehole

• Diameter
• 90 mm to 200 mm

• Dimension (L*W*H)
• 5400 mm x 2100 mm x 2300 mm

• Features
• High Penetration Rate, Low Fuel Consumption, Easy to Operate, Robust Construction

• Frequency
• 50 Hz

• Machine Type
• Mounted Wheeled/Truck Mounted

• Material
• High-Strength Steel Structure

• Motor Power
• 55 HP

• Noise Level
• Low Noise Operation

• Power
• 55 HP (Main Engine)

• Power Source
• Diesel Engine

• Product Type
• DTH Drilling Rig Machine

• Spindle Speed
• 0-110 rpm (Variable)

• Usage & Applications
• Water Well Drilling, Mining, Borehole, Geothermal Exploration

• Voltage
• 220V / 380V

• Weight (kg)
• 3500 kg

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, Not CNC

• Capacity
• Up to 200 m

• Color
• Blue & Yellow

• Computerized
• No

• Condition
• New

• Control System
• Other, Hydraulic

• Cutting Area
• Up to 200 m Depth

• Diameter
• Up to 300 mm

• Dimension (L*W*H)
• 5200 x 2000 x 2800 mm

• Features
• Heavy Duty Structure, Easy Operation, Robust Construction, High Efficiency

• Frequency
• 50-60 Hz

• Machine Type
• Rotary Drilling Rig

• Material
• Mild Steel

• Motor Power
• 45 HP

• Noise Level
• Low

• Power
• 45 HP

• Power Source
• Diesel Engine

• Product Type
• Water Well Drilling Rig Machine

• Spindle Speed
• 0-150 rpm

• Table Size
• Adjustable

• Usage & Applications
• Water Well Drilling, Borehole Drilling, Agricultural and Industrial Water Extraction

• Voltage
• 220-380 V

• Weight (kg)
• 3200 kg

• Automatic Grade
• Manual

• CNC Or Not
• Other, No

• Capacity
• Suitable for Drilling Depth up to 250 meters

• Color
• Black or Customized

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Diameter
• 76 mm - 140 mm

• Dimension (L*W*H)
• Length: 1.0 - 6.0 meters, Diameter: 76 mm - 140 mm

• Features
• High Strength, Precision Thread, Corrosion Resistance, Long Service Life

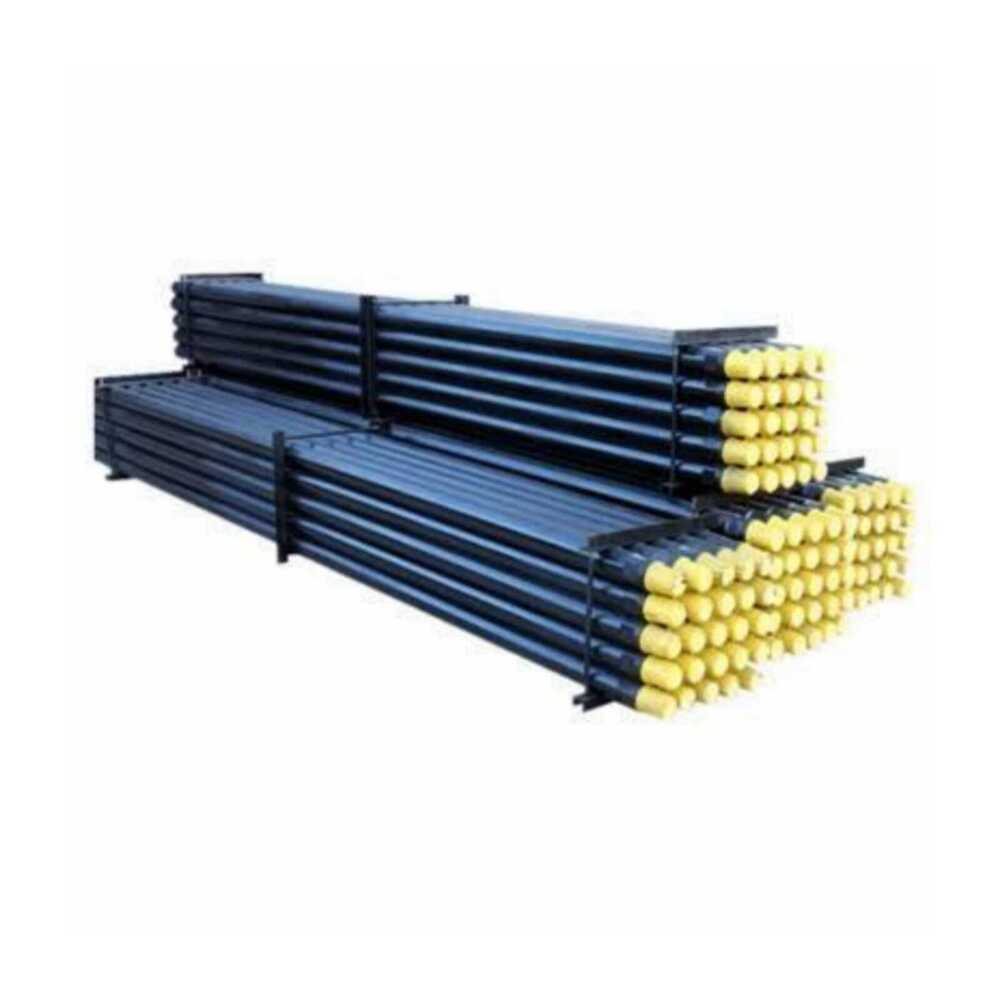

• Machine Type
• DTH Drilling Rod

• Material
• Alloy Steel

• Power Source
• Pneumatic or Hydraulic

• Product Type
• DTH Drilling Rod

• Usage & Applications
• Mining, Quarrying, Borewell, Construction Drilling

• Weight (kg)
• 35-65 kg (depending on length and diameter)

• Automatic Grade
• Manual

• CNC Or Not
• Other, No

• Capacity
• High Drilling Performance in Hard Rock

• Color
• Metallic Grey / Yellow / Black (As per Manufacturer)

• Computerized
• No

• Condition
• New

• Cutting Area
• Rock, Hard Soil, Sandstone, etc.

• Diameter
• 90 mm to 305 mm (Custom Sizes Available)

• Dimension (L*W*H)
• Varies as per Model and Size

• Features
• Wear Resistance, High Impact Strength, Robust Design, Corrosion Resistance

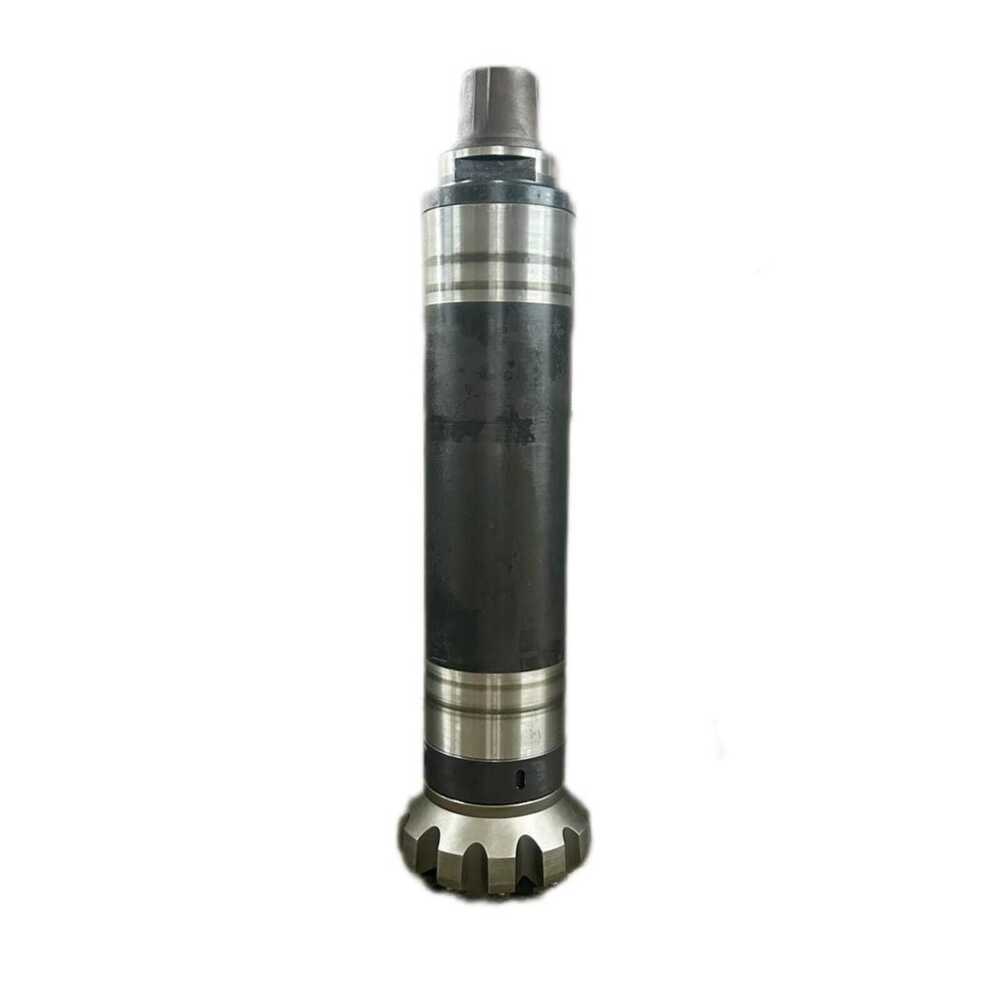

• Machine Type
• DTH Hammer Bit

• Material
• High Grade Alloy Steel

• Noise Level
• Standard/Depends on Operating Machinery

• Power Source
• Pneumatic or Hydraulic (External)

• Product Type
• DTH Drilling Hammer Bit

• Usage & Applications
• Mining, Water Well Drilling, Quarry, Construction, Geothermal Drilling

• Weight (kg)
• 13-45 kg (Depending on Bit Size)
